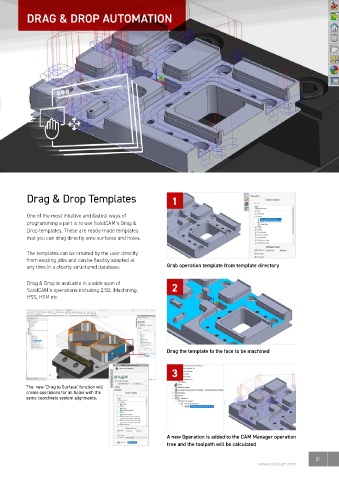

DRAG & DROP AUTOMATION
Drag & Drop Templates 1
One of the most intuitive and fastest ways of
programming a part is to use SolidCAM´s Drag &
Drop templates . These are ready-made templates
that you can drag directly onto surfaces and holes .
The templates can be created by the user directly
from existing jobs and can be flexibly adapted at
any time in a clearly structured database . Grab operation template from template directory
Drag & Drop is available in a wide span of
SolidCAM´s operations including 2,5D, iMachining, 2
HSS, HSM etc .
Drag the template to the face to be machined
3
The new "Drag to Surface" function will
create operations for all holes with the
same coordinate system alignments.
A new Operation is added to the CAM Manager operation
tree and the toolpath will be calculated
