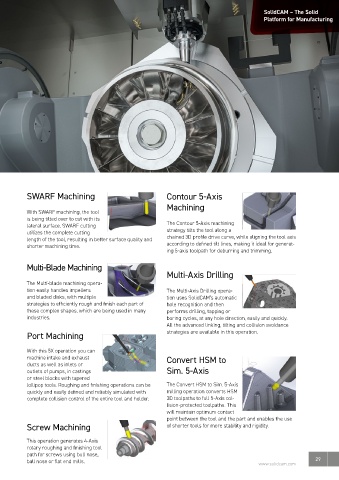

Page 29 - SolidCAM – Brochura Geral

SolidCAM – The Solid
Platform for Manufacturing

SWARF Machining Contour 5-Axis
Machining
With SWARF machining, the tool
is being tilted over to cut with its
lateral surface . SWARF cutting The Contour 5-Axis machining
utilizes the complete cutting strategy tilts the tool along a
length of the tool, resulting in better surface quality and chained 3D profile drive curve, while aligning the tool axis
shorter machining time . according to defined tilt lines, making it ideal for generat-
ing 5-axis toolpath for deburring and trimming .

Multi-Blade Machining
Multi-Axis Drilling
The Multi-blade machining opera-
tion easily handles impellers The Multi-Axis Drilling opera-
and bladed disks, with multiple tion uses SolidCAM’s automatic
strategies to efficiently rough and finish each part of hole recognition and then
these complex shapes, which are being used in many performs drilling, tapping or
industries . boring cycles, at any hole direction, easily and quickly .
All the advanced linking, tilting and collision avoidance
Port Machining strategies are available in this operation .

With this 5X operation you can
machine intake and exhaust Convert HSM to
ducts as well as inlets or
outlets of pumps, in castings Sim. 5-Axis
or steel blocks with tapered
lollipop tools . Roughing and finishing operations can be The Convert HSM to Sim . 5-Axis
quickly and easily defined and reliably simulated with milling operation converts HSM
complete collision control of the entire tool and holder . 3D toolpaths to full 5-Axis col-
lision-protected toolpaths . This
will maintain optimum contact
point between the tool and the part and enables the use
Screw Machining of shorter tools for more stability and rigidity .

This operation generates 4-Axis
rotary roughing and finishing tool
path for screws using bull nose,
ball nose or flat end mills . www .solidcam .com 29
